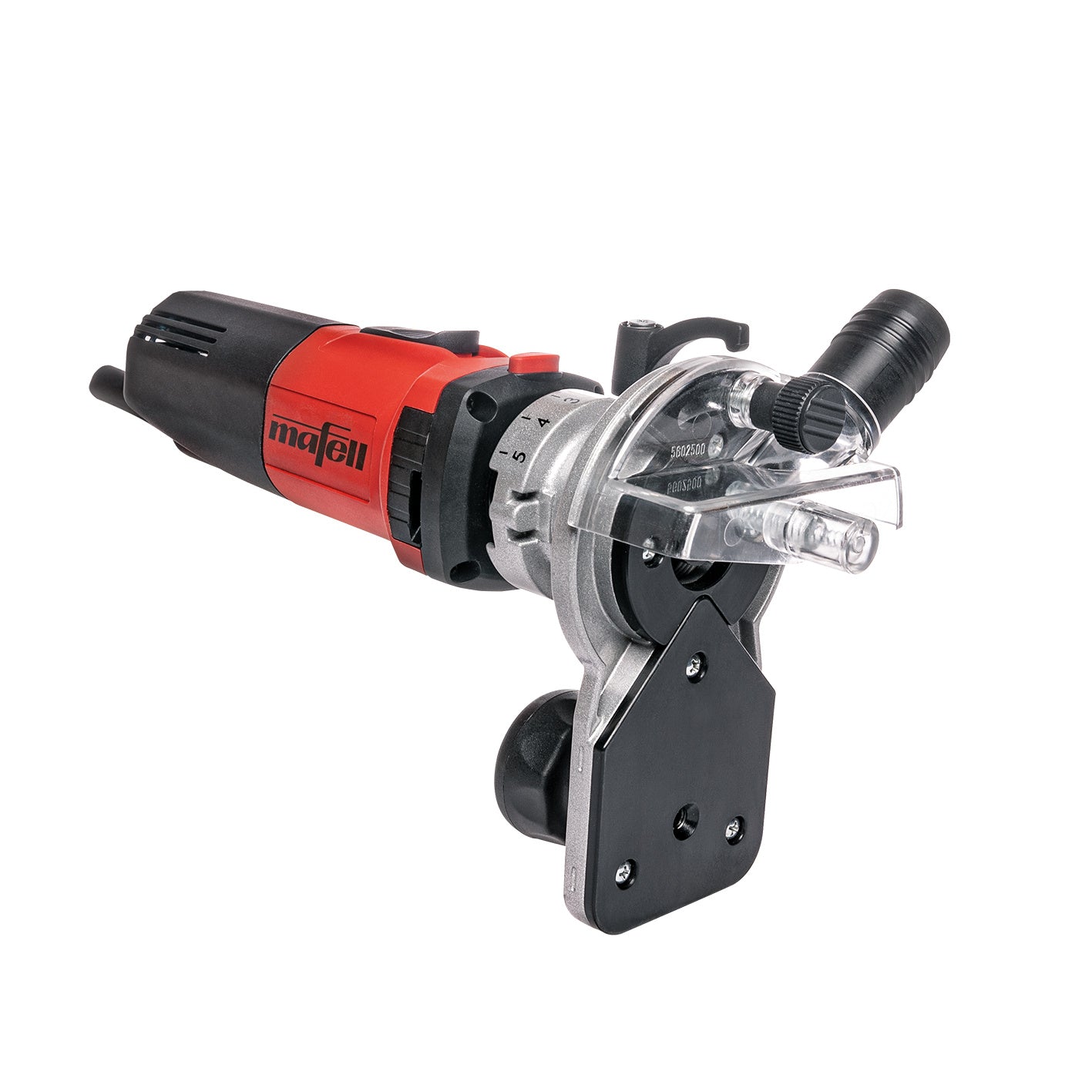

Mafell edge milling machine KF 1000 in the T-MAX - 91C501
Description
Description
The digital electronics are equipped with soft start, constant speed under load, idle speed reduction and overload protection.
The labyrinth seal permanently protects the spindle and bearings from the smallest particles, dust and chips.
AREA OF OPERATION

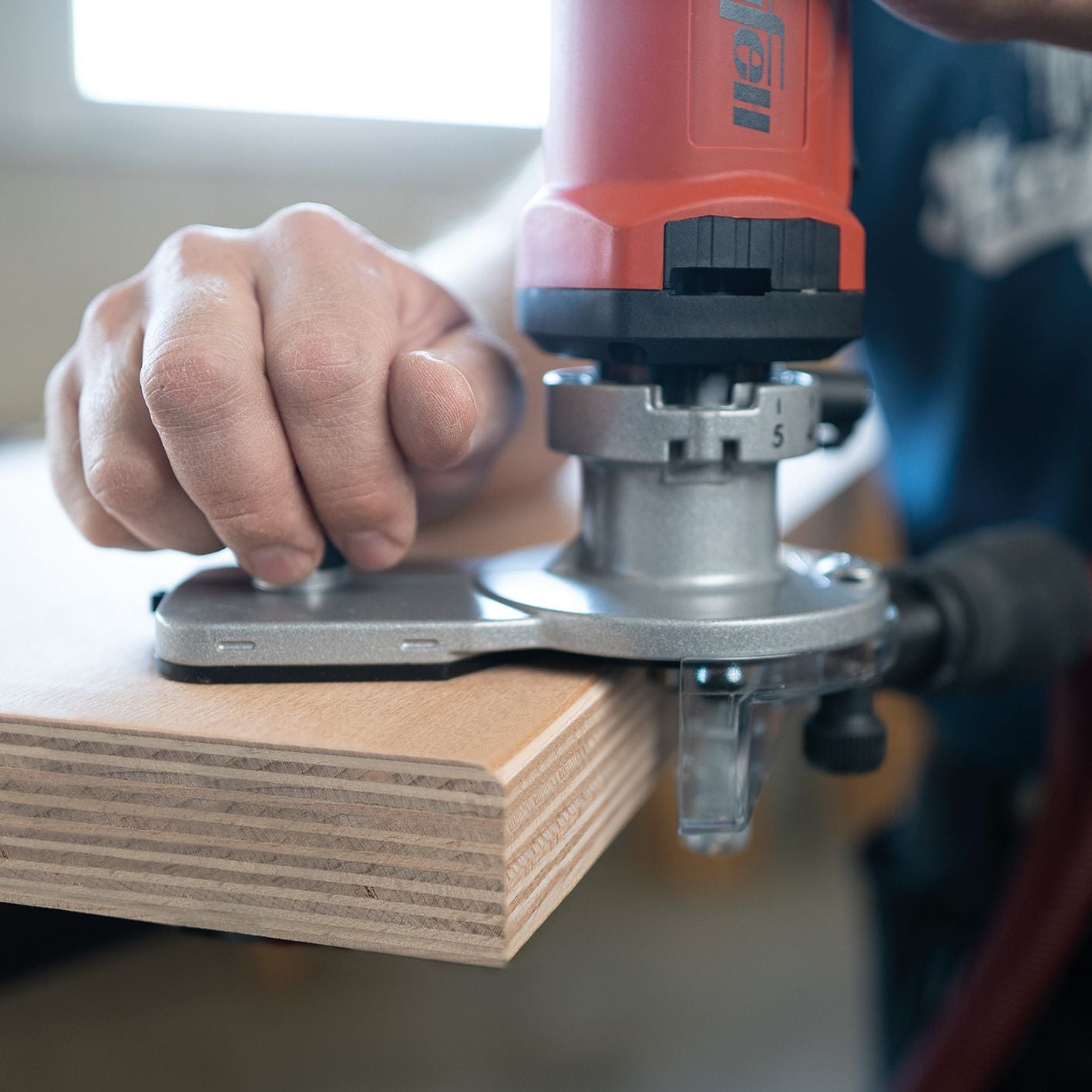

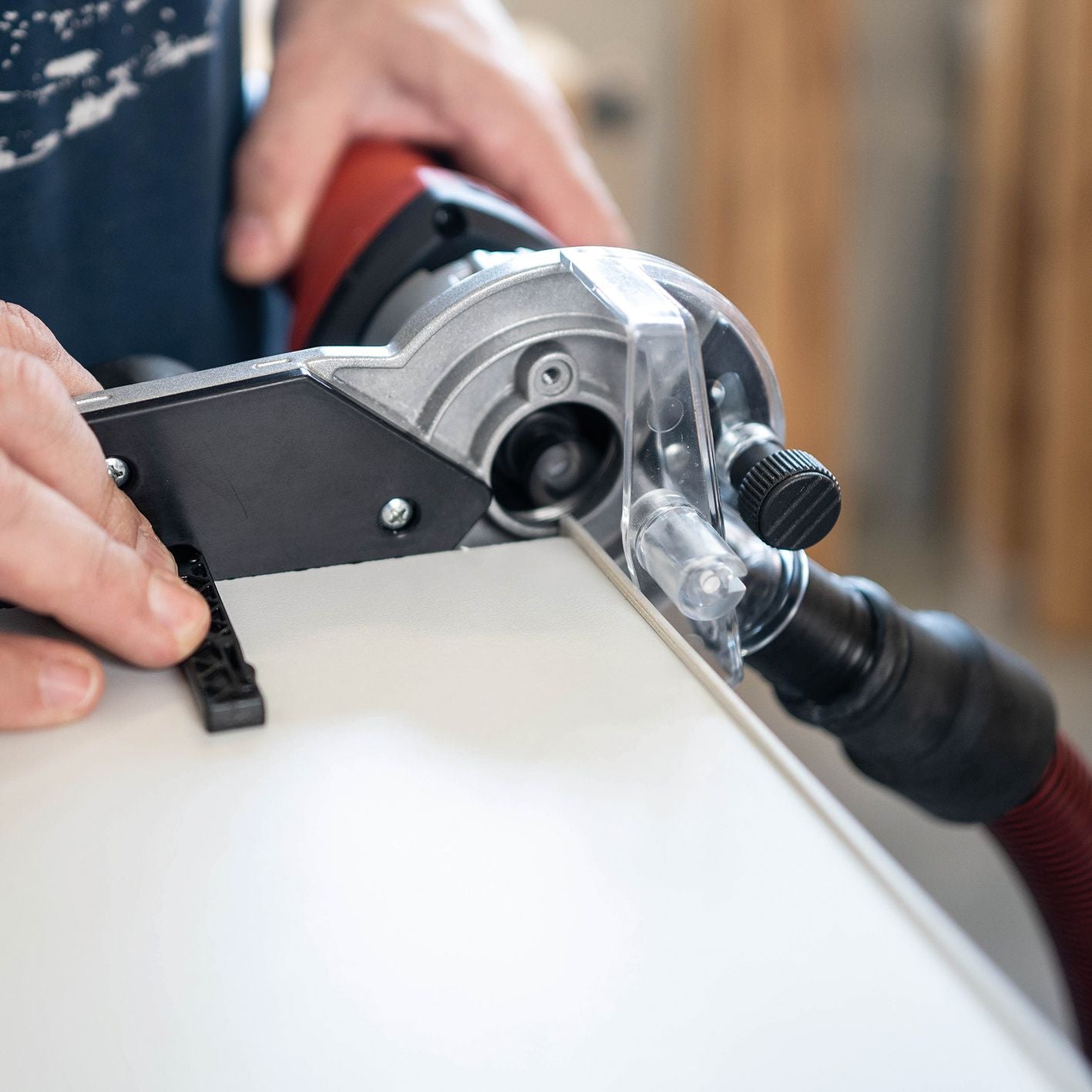

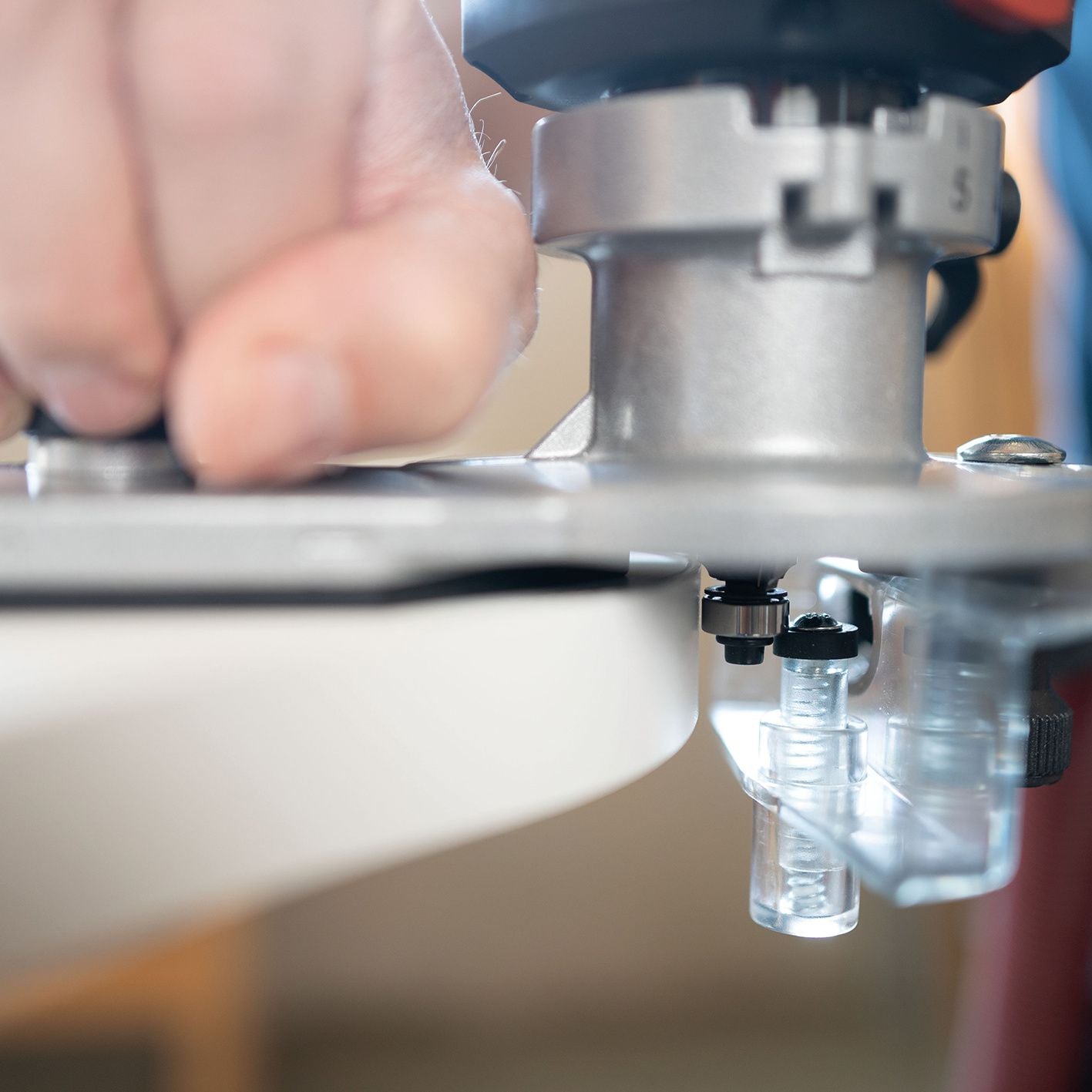

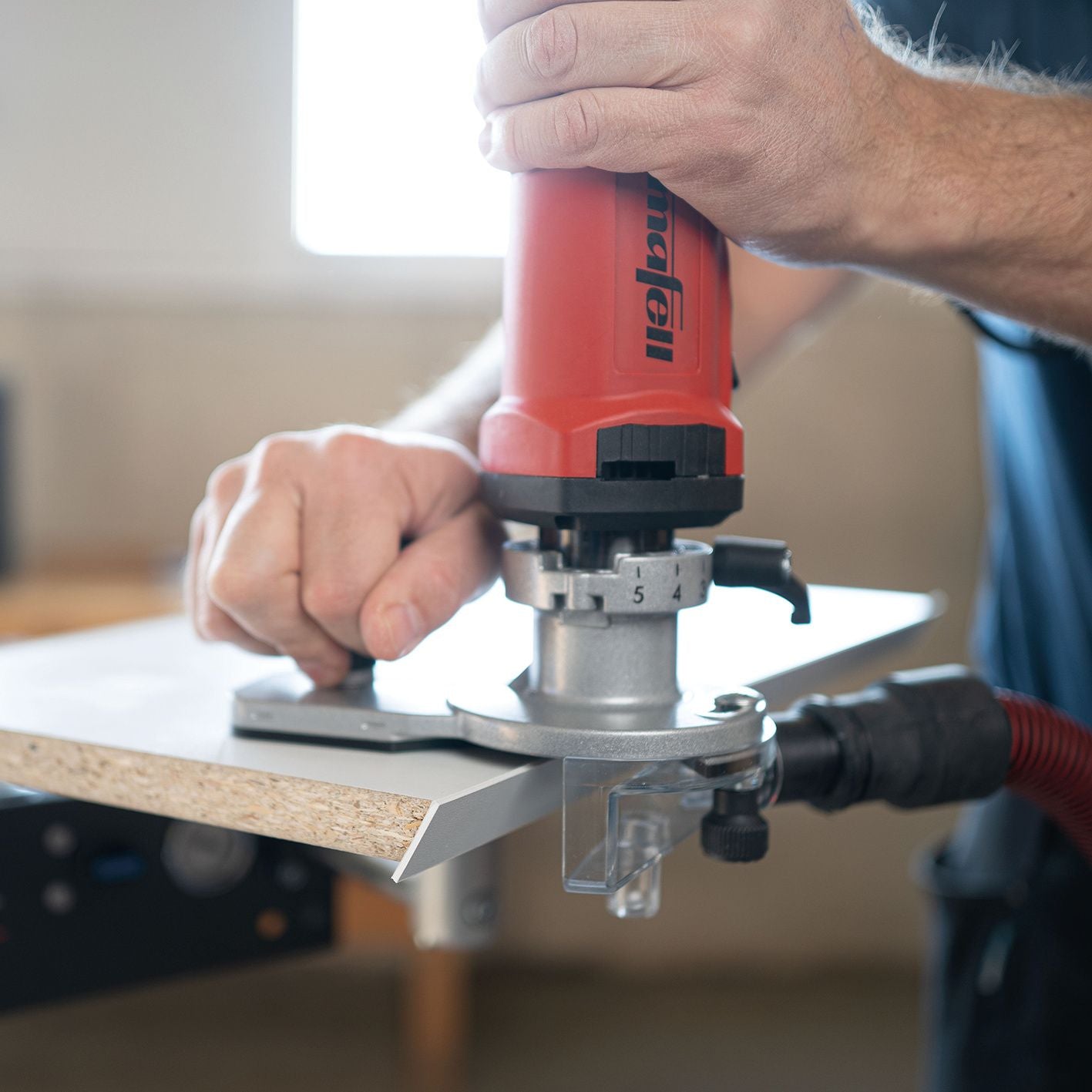

- Ideal for flush and profiled edge finishing
- For solid wood, plastics, veneer
ADVANTAGES
- Continuous fine adjustment of the milling depth via threaded ring with 1/10 mm scale.
- The suction adapter can be individually adjusted to the working position.
- The support ring can be removed for edge processing.
- Large, tilt-proof support surface for precise work results.
- The speed can be continuously adjusted for optimum milling speed.
SCOPE OF DELIVERY
- 1 support plate for 43 mm clamping neck
- 1 suction adapter
- 1 open-end wrench 17 mm
- 1 connection cable 4 m
- 1 union nut OZ 8
- 1 collet OZ 8, 8 mm
- 1 T -MAX transport and storage box (Systainer)
TECHNICAL DATA
| Dimensions (L x W x H) | 103 x 328 x 226 mm |
| sound pressure level dB (A) | 74 |
| universal motor | 230 V / 50 Hz |
| nominal power | 1000 W |
| clamping neck | 43 mm |
| collet | 8 mm |
| nominal idle speed | 4,000 - 25,000 rpm |
| Weight | 2.1 kg |
