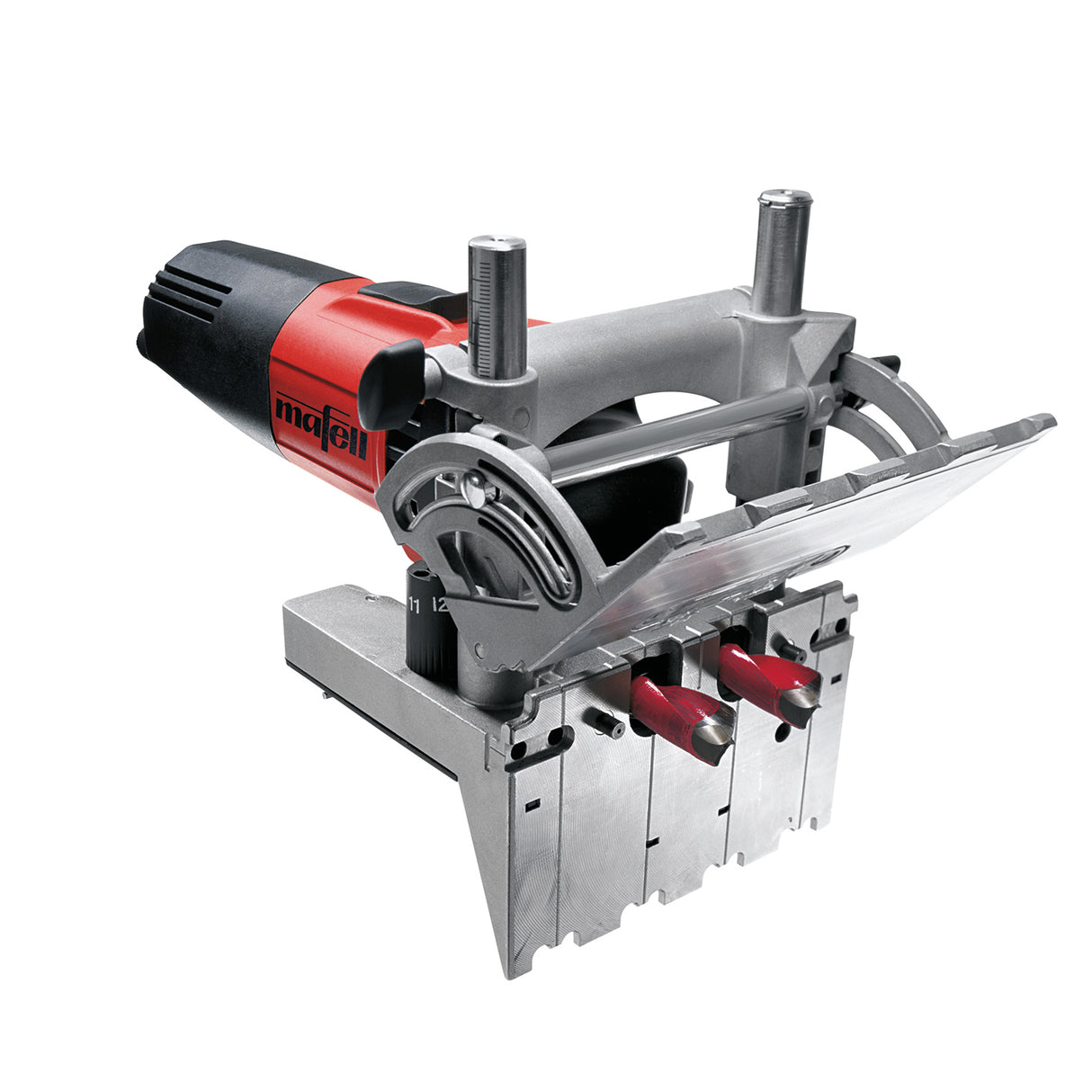

Mafell DuoDübler DD40 P PowerMAX in T-MAX - 916010
Delivery unit: 1 DuoDübler in the Systainer T-Loc, variant P for more power
Safe shopping
Safe shopping
This online shop is PCI-DSS Level 1 certified – this is the highest security standard in payment transactions. This means that all payments (credit card, PayPal, etc.) are processed according to the same security standards as banks.
We also use 256-bit SSL encryption . This means that personal data, passwords and payment information are protected at all times.
Shipping & Delivery
Shipping & Delivery
Every order is carefully processed and checked. We ship orders from Monday to Friday.
We provide information about delivery times, countries and costs here .
Important NOTE
Important NOTE
The installation of spare parts, especially electronic components, may only be carried out by qualified personnel or after careful examination of the installation instructions.
Working on electrical systems poses considerable risks for people and equipment. Improper installation, faulty wiring or failure to comply with safety regulations can lead to electric shocks, short circuits, fires, personal injury or malfunctions.
Before installation, devices must be disconnected from the power supply and secured against being switched on again.
Please check before ordering whether the spare part is suitable for your device. We accept no liability for damage caused by improper installation or incorrect handling.
Spare parts cannot be exchanged if they have already been installed, tested or are no longer new.
Please note that no technical installation assistance or telephone support is offered for the spare parts.
Mafell DuoDübler DD40 P PowerMAX in T-MAX - 916010
Description
Description
The DuoDübler DD40 is the only mobile doweling device and another future-oriented innovation from MAFELL.
By using conventional wooden dowels in combination with the precise DuoDübler system DD40, MAFELL has succeeded in revolutionizing connection technology in mobile applications. The DD40 system works faster, more precisely and more cost-effectively than any other connection system.
The workpiece is precisely fixed during gluing. This makes the clamping process much easier and faster, or it can be eliminated entirely.
With the DD40 system solution, MAFELL offers a complete package. In addition to the machine in the T-MAX, the Power, Maxi or MidiMAX also includes wooden dowels, a glue bottle, 2 anti-slip mats and a drill.
AREA OF OPERATION
- rows of holes
- drilling of fittings
- Ideal for carcass construction, staircase construction, workshop and assembly
- Material use e.g.: solid wood, panel materials
- Connections of any kind from 5 - 16 mm
ADVANTAGES
- The easy-to-read scale for adjusting the material thickness and the 6-way turret stop ensure that the DD40 can be adjusted for different material thicknesses in a short time.
- Fast and precise positioning using the stop system. Retractable stop pins and additional stops make it possible to drill holes close to the edge – without any marking.
- Drilling depth, material thickness, stop angle: all of these settings can be adjusted continuously.
- The swivel stop is guided and clamped on both sides.
SCOPE OF DELIVERY
- 2 anti-slip mats (265 x 175 mm); Order No. 095063
- 1 glue bottle 250 ml (without contents); Order No. 095059
- 1 hexagon wrench with handle; Order No. 093282
- 1 additional stops (assortment); Order No. 203473
- 1 glue nozzle Ø 8 mm; Order No. 095060
- 1 pack of round wood dowels 8 x 30 mm, 200 pieces
- 1 VE round wood dowels 10 x 40 mm, 100 pieces
- 1 pack of round wood dowels 12 x 60 mm, 40 pieces
- 2 MAFELL dowel drills HM Ø 8, 10, 12 mm
- 1 connection cable 4 m; Order No. 077015
TECHNICAL DATA
| drilling depth | 0 - 40 mm |
| nominal idle speed | 13,500 rpm |
| nominal power | 1000 W |
| Weight | 2.9 kg |
| Tool diameter max. | 16 mm |
| Tool diameter min. | 5 mm |
| drill bit spacing | 32 mm |
| tool holder Ø | 8 mm |
| universal motor | 230 V / 50 Hz |
| swivel range | 0 - 90 ° |
