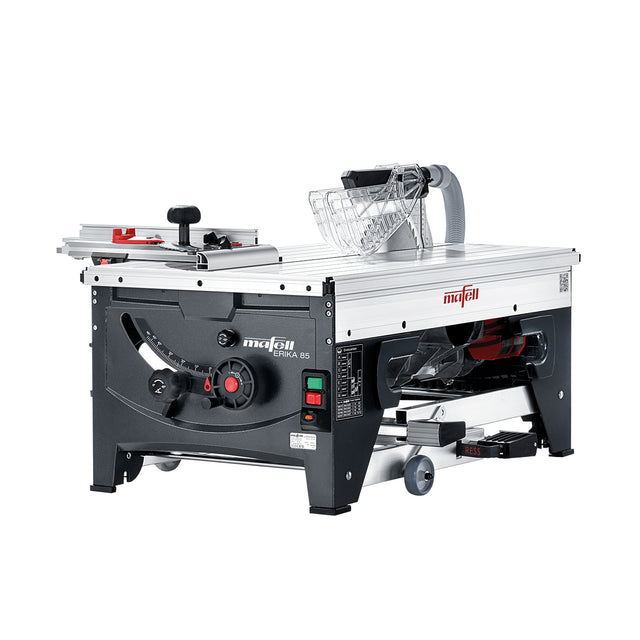

Mafell underfloor pull saw ERIKA 85 - 971901
Delivery unit: 1 basic machine with angle stop ERIKA 85
Safe shopping
Safe shopping
This online shop is PCI-DSS Level 1 certified – this is the highest security standard in payment transactions. This means that all payments (credit card, PayPal, etc.) are processed according to the same security standards as banks.
We also use 256-bit SSL encryption . This means that personal data, passwords and payment information are protected at all times.
Shipping & Delivery
Shipping & Delivery
Every order is carefully processed and checked. We ship orders from Monday to Friday.
We provide information about delivery times, countries and costs here .
Important NOTE
Important NOTE
The installation of spare parts, especially electronic components, may only be carried out by qualified personnel or after careful examination of the installation instructions.
Working on electrical systems poses considerable risks for people and equipment. Improper installation, faulty wiring or failure to comply with safety regulations can lead to electric shocks, short circuits, fires, personal injury or malfunctions.
Before installation, devices must be disconnected from the power supply and secured against being switched on again.
Please check before ordering whether the spare part is suitable for your device. We accept no liability for damage caused by improper installation or incorrect handling.
Spare parts cannot be exchanged if they have already been installed, tested or are no longer new.
Please note that no technical installation assistance or telephone support is offered for the spare parts.
Mafell underfloor pull saw ERIKA 85 - 971901
Description
Description
As the world's first underfloor pull saw, the ERIKA has become the epitome of mobile sawing since its introduction. After almost 40 years of experience, the current generation has everything on board that users expect from a modern underfloor pull saw.
The integrated Quickstand places the ERIKA on 4 stable aluminum legs within seconds. Protective rubber stoppers on the feet also prevent slipping or bumping.
The unique dust channel bundles the sawdust and safely leads it to the back. Thanks to this new development, your extraction device is used even more effectively. The result: clean work on a clean construction site! Operating the ERIKA leaves no questions unanswered. Clearly designed controls are all logically located on the front of the machine!
Thanks to the E-control electronic control system and the corresponding original MAFELL saw blade, it is possible to process other materials in addition to wood, such as plastics or aluminum profiles.
Further advantages for the ERIKA 85: Extremely stable table profile, swivel range from -3° to 48°, a lowerable splitting wedge and the max. cutting length of 430 mm.
area of operation
- cross-cuts and longitudinal cuts
- table saw function
- bevel cuts up to 48°
- Material use e.g.: solid wood, panel materials, parquet and laminate, aluminum profiles, plastic
Advantages
- New dust channel revolutionizes extraction - for less dust when working.
- Lightest underfloor pull saw in its class - for quick and effortless transport.
- Adjustable speed - for individual processing of wood, plastics or aluminum profiles.
- With voltage drop switch to prevent uncontrolled restart after a power failure.
- The rear legs of the ERIKA are equipped with wheels for easy handling.
scope of delivery
- 1 underfloor pull saw ERIKA 85
- 1 HM saw blade 250 x 2.8 x 30 mm, Z 40, WZ for universal use in wood; Order No. 092465
- 1 multi-function stop MFA with switchable angle locking; Order No. 207910
- 1 wheel mounting kit; Order No. 202889
- 1 push stick; Order No. 034901
- 1 hexagon wrench 6 mm; Order No. 093081
- 1 suction set with 2 nozzles; Order No. 093670
- 1 clamping piece; Order No. 038294
- 1 Quickstand
- 1 connection cable 4 m
Technical Details
| cutting height | - 1 - 85 mm |
| cutting height at 45° | - 1 –59 mm |
| swivel range | -3 - 48 ° |
| train length | 430 mm |
| work surface table top | 525 x 915 mm |
| working height without stationary equipment | 415 mm |
| working height with stationary equipment | 891 mm |
| nominal idle speed | 2,050 - 4,300 rpm |
| nominal power | 2,500 W |
| suction connection Ø | 58 mm |
| Weight (including multifunction stop MFA) | 40 kg |
| cutting speed | 26.8 - 56.3 m/s |
| universal motor | 230 V / 50 Hz |
