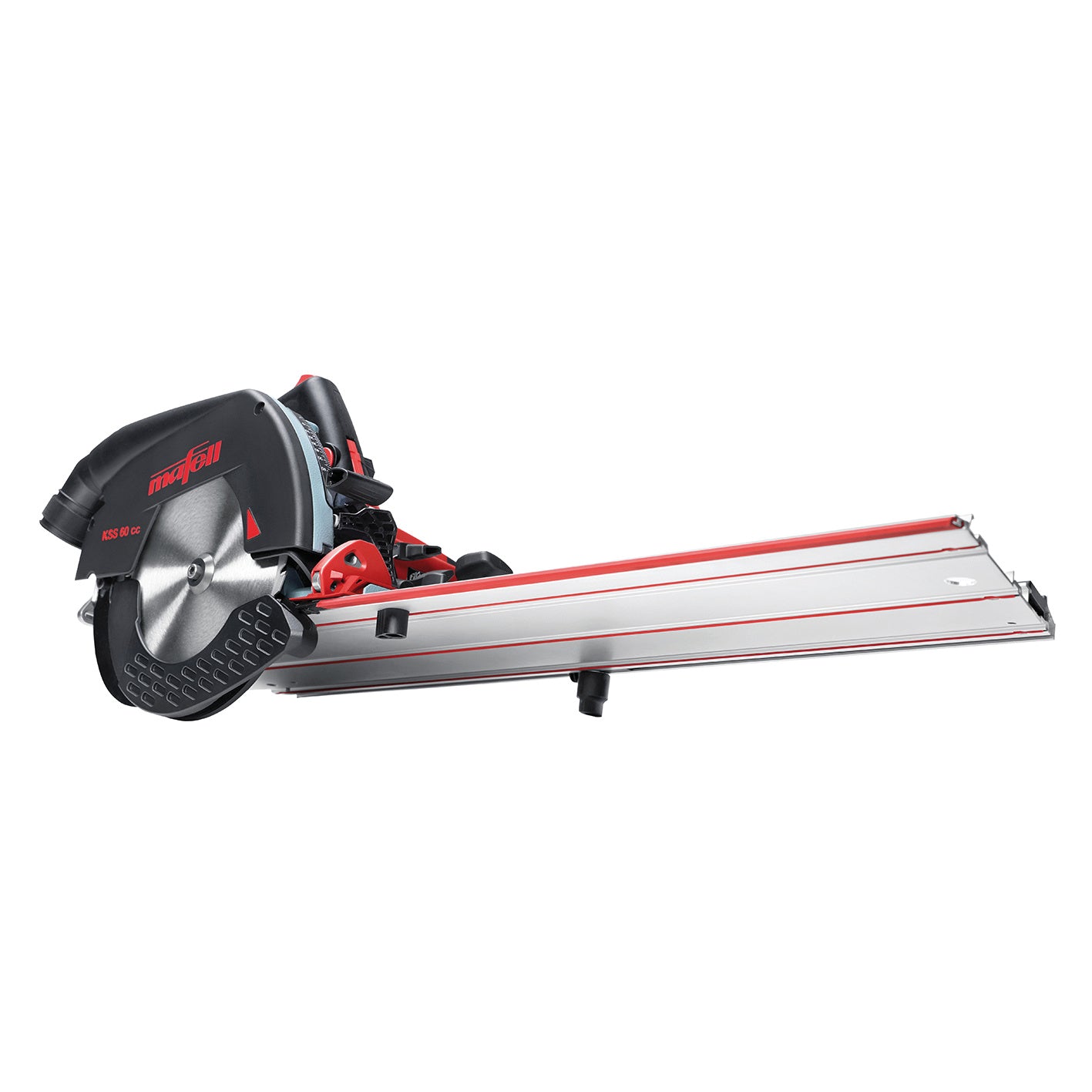

Mafell crosscut saw KSS 60 cc in carrying case - 91B102
Description
Description
With their low weight and cutting depths of up to 60 mm on the rail, the new, powerful cross-cut rail saws from MAFELL set clear accents, for example in interior work.
After the cut, the saw is automatically retracted to its starting position and offers a maximum cutting length of 408 mm at full cutting depth.
Concentrated power and high torque have a name: CUprex, the high-performance motor with performance-optimized digital electronics and newly developed control technology. The speed can be continuously adjusted to suit different materials and applications.
There is no longer any need to unscrew the splitting wedge - the FLIPPKEIL offers you optimum user comfort and safety when plunging.
AREA OF OPERATION
- cross cuts with guide device
- longitudinal and cross sections
- plunge and cutouts
- Material use e.g.: solid wood, panel materials, insulation, doors, worktops, interior fittings and renovations
ADVANTAGES
- Thanks to the unique swivel system, a cutting depth of 47 mm (including rail) can always be achieved in the angle range between 0° and 45°.
- With a single push of a button, the machine can be detached from the cross-cutting rail and used with all the applications of the K 65 cc.
- The rubberized underside holds the crosscut saw securely on the material and protects the workpiece surface from damage.
- Bright LED lights ensure extensive illumination of the work area.
SCOPE OF DELIVERY
- 1 parallel stop
- 1 guide device M, max. cutting length 400 mm; Order No. 208170
- 1 hexagon wrench 5 mm; Order No. 093034
- 1 HM saw blade 185 x 1.4/2.4 x 20 mm, Z 32, WZ, for fine cuts in wood; Order No. 092489
- 1 connection cable 4 m; Order No. 087323
- 1 Transport case TK, metal version (LxWxH) 785x320x285 mm
TECHNICAL DATA
| universal motor | 230 V / 50 Hz |
| weight with rail | 5.9 kg |
| Cutting depth with rail at 0° | 0 - 61 mm |
| Cutting depth with rail at 45° | 0 - 47 mm |
| Cutting depth without rail at 0° | 0 - 67 mm |
| Cutting depth without rail at 45° | 0 - 53 mm |
| swivel range | 0 - 45 ° |
| cutting length | 408 mm |
| angle cuts | -60 - +60 ° |
| nominal idle speed | 2700 - 4700 rpm |
| nominal power | 1800 W |
