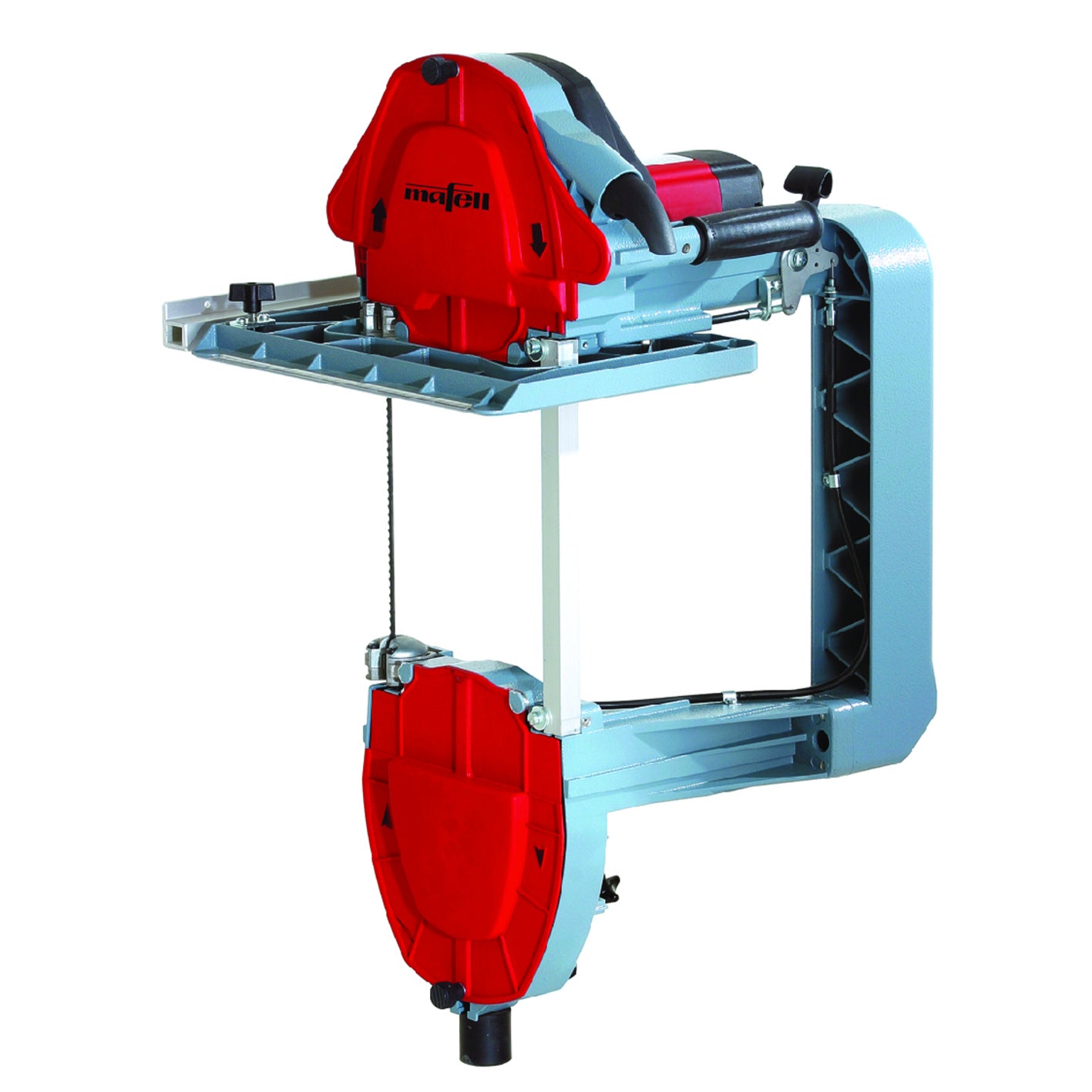

Mafell hand band saw Z 5 Ec - 925301
Description
Description
The Z 5 Ec hand band saw is the innovative successor model to the legendary Z 3. Thanks to the CUprex high-performance motor and the magnesium die-cast components, it impresses with its lower weight (13.7 kg), increased performance, even higher torque and excellent handling.
With ball-bearing saw blade guides for excellent blade travel and therefore optimum cutting. Maximum 8 mm saw blades for optimum flexibility when chamfering and profiling purlins and rafters.
For thicker materials, the compact Z 5 Ec has a full 305 mm cutting depth. The precision typical of MAFELL hand band saws also ensures an excellent cutting pattern and perfect squareness of the cuts in the Z 5 Ec.
The cooling air from the high-performance engine is used to blow the scribe line clear. The result: no chips at head height and a clear view of the scribe line at all times.
area of operation
- longitudinal and cross sections
- tails and profiles
- notch cuts and laminations
- slanted cuts and oblique notches (two-man operation)
- Material use e.g.: solid wood and glued laminated timber
Advantages
- The back-toothed saw blade makes it easier to move back in the wood - especially easy if the saw blade is blocked with the mechanical brake.
- The spring preload of the lower guide roller ensures easy, quick belt changes.
- With voltage drop switch to prevent uncontrolled restart after a power failure.
- The unique pivoting saw blade guide enables right-angled cuts up to 90 mm deep without the second saw blade touching the material, e.g. when making joins.
scope of delivery
- 1 hand band saw Z 5 Ec
- 1 saw band, 8 mm wide, 4 teeth with back toothing
- 1 saw band, 8 mm wide, 4 teeth per inch
- 1 saw band, 6 mm wide, 4 teeth per inch
- 1 handle for two-man use; Order No. 203824
- 1 rip fence; Order No. 039386
- 1 connection cable 10 m
Technical Details
| cutting depth | 305 mm |
| 1 hinge side pivoting | 0 - 30 ° |
| nominal idle speed | 650-1550 rpm |
| nominal power | 2250 W |
| Weight | 13.6 kg |
| universal motor | 230 V / 50 Hz |
